Import the models in IFC format into the Models folder created within the Explorer menu. Click on Add>upload files and upload the “betão” and “metal” file. To do this, you can also simply drag and drop the files into the Models folder.

Then select the two files and click on the View in 3D Viewer option.

Select the visible models with the selection tool (ctrl+Single selectionmode or ).

Click on the Clash Set tool located in the left side menu and then on Add clash set.

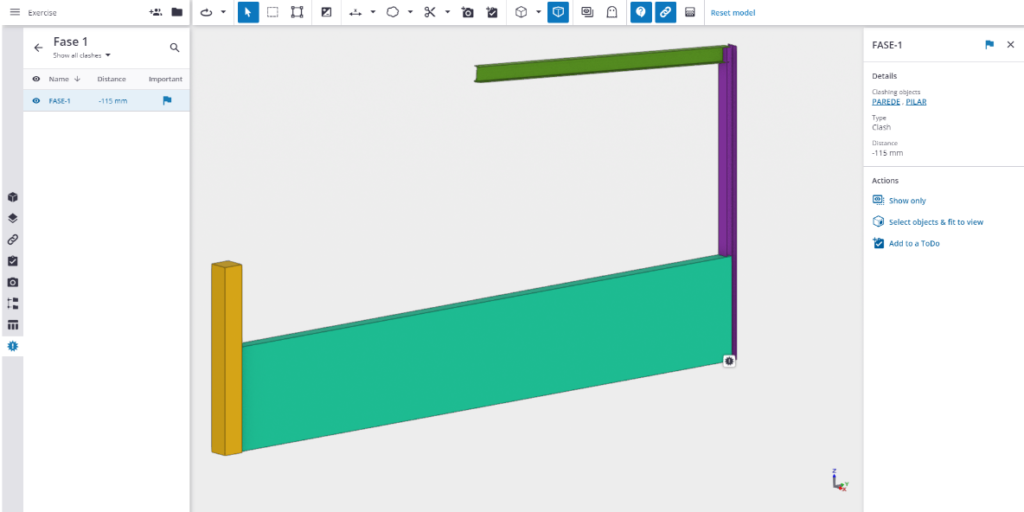

Fill in the parameters in the box menu that appears on the right. This allows you to choose the team members who will receive the information. At the end click on Run test.

You can add a task in Add to a ToDo to be received by the team that could resolve the nonconformity.

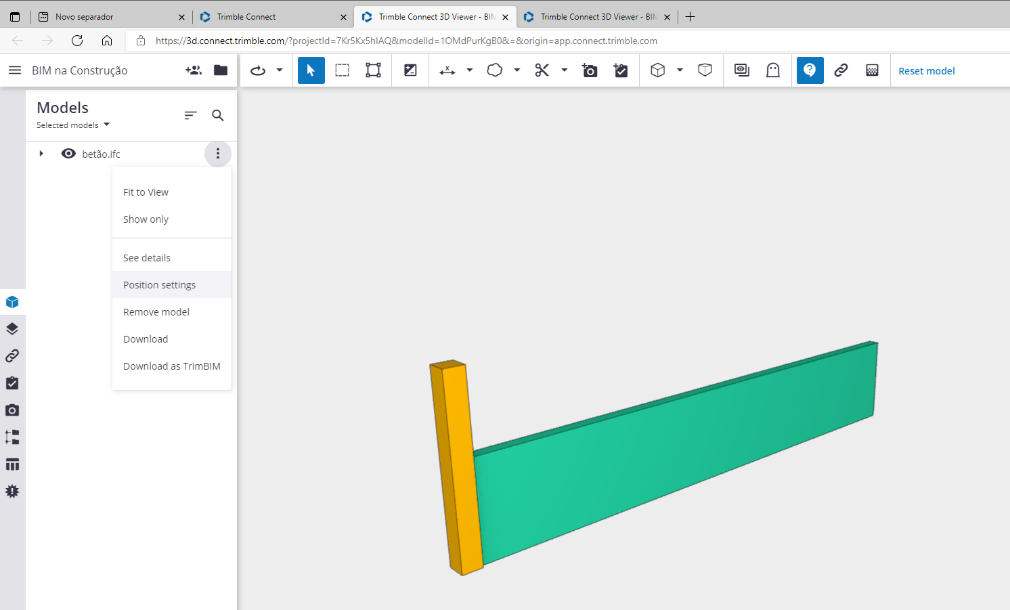

Quick tip: If there is an eventual failure in the positioning of the different models, it is possible to reposition them within Trimble Connect through Model Positional.
